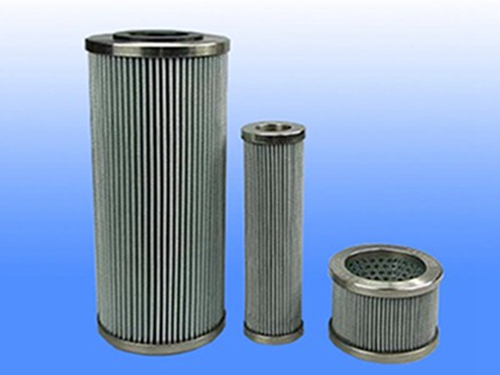

Stainless steel folded filter element is widely used in environmental protection, petroleum, chemical, medical, high temperature gas filtration, scientific research, metallurgy, food, machinery and other industries.

Features:

1. Stainless steel precision filter element has high porosity, good air permeability, small resistance and low pressure difference;

2, stainless steel precision filter element into a folded shape, the filtration area is large, large amount of pollution;

3, stainless steel precision filter element high temperature resistance, corrosion resistance, suitable for high viscosity liquid filtration;

4, good regeneration performance, chemical cleaning, high temperature and ultrasonic cleaning can be used repeatedly;

5, all stainless steel structure, wide chemical compatibility;

Main technical parameters:

1. The highest working temperature of stainless steel precision filter element :≤500℃

2. Filtration accuracy :1-200um

3, working temperature: 0.1-30mpa

4, filter size :5-40 inches (can be made according to user requirements)

5, interface type :222, 226, 215, M36, M28, M24, M22, M20 thread interface, etc
